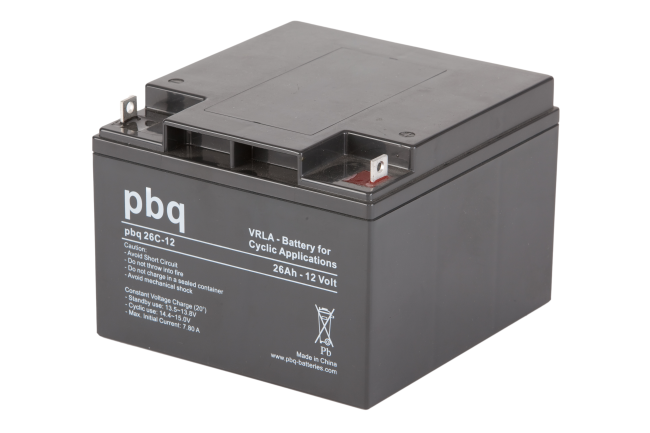

pbq C 26-12 12V26AH蓄电池

技术指标

品牌：pbq

系列：标准

类型：AGM电池

类型：pbq C 26-12

电压：12V

容量：26Ah

尺寸：175x166x125mm

系列介绍：

The pbq cyclic batteries differ from standard batteries in several ways: the lead plates are made of another alloy and the grids are shaped differently than those found in standard VRLA batteries.

Functional life of cyclic batteries is normally calculated as the number of discharges versus the depth of the discharge (DoD – Depth Of Discharge).

PBQ循环电池与标准电池在几个方面有所不同：铅板由另一种合金制成，并且栅格的形状不同于标准VRLA电池中的栅格。

循环电池的使用寿命通常用放电次数与放电深度（DoD –放电深度）的关系来计算。

What is the functional life of a cyclic battery?

pbq cyclic VRLA batteries offers an exceptionally good functional life with well over 1.200 cycles at 30% DoD. However, the deeper the discharge,the fewer the total number of cycles obtainable from the battery. It is therefore best to select the battery such that a depth of discharge between 30% and 50% will be reached during normal use or use the largest battery that fits your budget and physical space.

循环电池的使用寿命是多少？

pbq循环VRLA电池在30％DoD的情况下可提供超过1200个循环的出色使用寿命。但是，放电越深，从电池可获得的总循环次数就越少。因此选择电池，以便在正常使用期间可以达到30％到50％的放电深度，或者使用适合您的预算和实际空间的电池。

Charging cyclic batteries

It is advised to use a 2- or 3-step charger that starts its charge cycle at 14,5 – 14,9V at 25ºC. This slightly higher voltage helps in a better conversion of PbO2 (LeadOxide) to pure Pb (Lead) and will ensure a low internal resistance of the battery. 2 and 3 step chargers will drop the voltage when the battery reaches around 80% of its capacity and overcharging will thus be prevented.

循环电池充电

建议使用2步或3步充电器，在25ºC时从14.5 – 14.9V开始充电。此稍高的电压有助于将PbO2（铅氧化物）更好地转换为纯Pb（铅），并确保电池的内部电阻较低。当电池达到其容量的80％左右时，两步和三步充电器会降低电压，从而可以防止过度充电。
